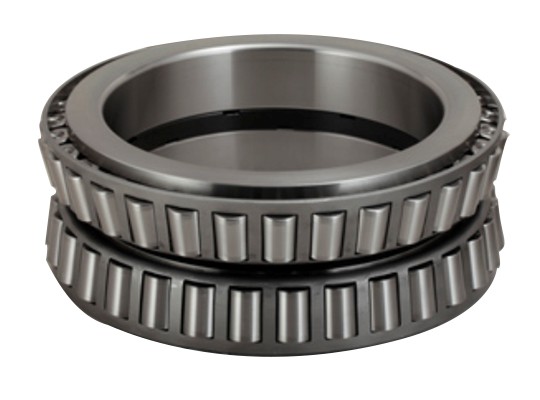

Metric series Double-row tapered roller bearings

Double row tapered roller bearings are used to carry combined radial and axial loads mainly consisting of radial load. They can limit axial displacement in two direction of the shafts (or shells) and can therefore be used as bidirectional axial positioning bearings.
The performance of double row tapered roller bearings (type TDO) is similar to that of two single row tapered roller bearings installed back to back, but the double row tapered roller bearings have fewer parts, are easier to install and disassemble and have better rigidity. Therefore, they are often used for alternating load carrying conditions, such as reducer, coiling machine and so on.

sale@lyefinebearing.com
Wechat : +86-13837910731
Tel:+86-13837910731
Chat NowSend Message
Specifications|Product introduction|Related products|Inquiry
Specifications
Double-row tapered roller bearings

Dimensions Basic load rating Bearing code Installation size constant Calculation coefficient weight Limit speed
mm kN Current code Original code da Da a2 ra ra1 e Y1 Y2 Y0 kg r/min
max min max max
d D T C r r1 Cr Cor 　 　        mm  　 　 　 　 　 fat oil
min min
150 210 86 70 2.5 1 419 887 352930 2097930E 159 204 10 2.1 0.6 0.27 2.5 3.7 2.4 10.5 900 1300
　 250 138 112 2.5 1 858 1620 352130 2097730 163 242 14 2.1 1 0.3 2.2 3.3 2.2 26 850 1100
　 270 164 130 4 1 1250 2250 352230 97530E 164 256 17 3 1 0.44 1.6 2.3 1.5 38 800 1000
　 270 172 138 4 1 1250 2250 352230X2 97530 164 260 17 3 1 0.39 1.7 2.6 1.7 38 800 1000
160 240 115 90 3 1 641 1400 352032X2 2097132 168 228 14 2.5 1 0.37 1.8 2.7 1.8 14.9 850 1100
　 270 150 120 3 1 1050 2030 352132 2097732 172 252 12 2 1 0.36 1.9 2.8 1.8 32.5 800 1000
　 290 178 144 4 1 1400 2730 352232 97532E 174 176 17 3 1 0.44 1.6 2.3 1.5 49 700 900
170 260 120 95 3 1 672 1460 352034X2 2097134 184 250 13 3 1 0.31 2.2 3.2 2.1 21 800 1000
180 280 134 108 3 1 952 1880 352036X2 2097136 194 263 13 2.5 1 0.28 2.4 3.6 2.4 29 670 850
　 280 142 110 3 1 952 1880 352036 2097136E 194 263 13 2.5 1 0.28 2.4 3.6 2.4 28.5 800 1000
　 300 164 134 3 1 1290 2540 352136 2097736 194 279 14 2.5 1 0.26 2.6 3.8 2.6 44 670 850
　 320 192 152 5 1.1 1750 3350 352236 97536E 198 306 20 4 1 0.45 1.5 2.2 1.5 62.5 600 750
190 289.5 100 40 3 3 750 1500 372038 - 　 　 　 　 　 0.42 1.6 2.4 1.6 27 700 900
　 320 170 130 3 1 1440 2800 352138 2097738 204 298 20 2.5 1 0.31 2.2 3.2 2.1 51 670 850
200 280 116 92 3 1 758 1423 352940X2/YA 2097940EK 214 273 14 2.5 1 0.39 1.66 2.53 1.66 14.8 700 900
　 280 105 80 3 1 650 2660 352940X2 2097940 214 266 13 2.5 1 0.39 1.8 2.6 1.7 18.5 700 900
　 310 152 120 2.5 1.1 1180 2720 352040X2 2097140 212 297 10.5 2 1 0.39 1.7 2.6 1.7 41 670 850
　 340 184 150 3 1 1680 3340 352140 2097740 220 326 18 2.5 1 0.25 2.7 4 2.7 64 670 850
　 360 218 174 5 1.1 2310 4250 352240 97540E 218 342 22 4 1 0.41 1.7 2.5 1.6 90.5 600 750
220 300 110 88 3 1.2 660 1710 352944X2 2097944 231 292 12 2.5 1 0.31 2.2 3.2 2.1 21.2 670 850
　 340 165 130 4 1 1360 2790 352044X2 2097144 234 331 18.5 3 1 0.35 1.9 2.9 1.9 47.7 600 750
　 370 195 150 4 1.1 1740 3450 352144 2097744 238 356 23.5 3 1 0.37 1.8 2.7 1.8 76.3 600 750
230 355 145 110 6 3 1060 2040 350646D1 37746 264 340 　 4 1 0.33 3 2 2 43.6 600 750
240 320 116 92 3 1 820 1910 352948 2097948E 254 314 12 2.5 2.5 0.32 2.2 3 2.2 22.3 600 750
　 320 110 90 3 1.5 820 1910 352948X2 2097948 254 314 12 2.5 2.5 0.32 2.1 3.1 2.1 23 600 750
　 360 165 130 4 1 1370 3180 352048X2 2097148 258 340 20 3 3 0.33 2 3 2 52.8 530 670
　 360 166 128 4 1 1370 3180 352048 2097148E 258 340 20 3 3 0.33 2 3 2 55.6 530 670
　 400 160 128 5 1.5 1570 3370 32248X2/DB 3-754 252 427 2.6 3 1 1.6 2.3 7.5 0.43 174 500 630

Dimensions Basic load rating Bearing code Installation size constant Calculation coefficient weight Limit speed
mm kN Current code Original code da Da a2 ra ra1 e Y1 Y2 Y0 kg r/min
max min max max
d D T C rm r1 Cr Cor 　 　 mm  　 　 　 　 　 fat oil
min min
260 360 134 108 3 1 1263 2430 352952X2 2097952 274 350 16 2.5 1 0.37 1.8 2.7 1.8 36.8 530 670
　 400 150 110 9.5 1.5 1240 2330 - 37852 300 383 9.5 9.5 1.6 0.39 1.7 2.5 1.7 60.3 530 670
　 400 185 146 3.55 1.5 1570 3600 352052X2 2097152 277 380 22 4 1 0.3 2.3 3.3 2.2 76.8 500 630
　 400 190 146 5 1.1 1780 3830 352052 2097152E 277 380 22 4 1 0.3 2.3 3.3 2.2 79.5 500 630
　 430 180 130 7.5 1.5 1937 3016 350652 97752 285 398 25 6 1 0.35 1.95 2.9 1.91 93.4 500 630
　 440 225 180 4 1.1 2480 5050 352152 2097752 278 418 25 3 3 0.24 2.8 4.2 2.8 124 450 560
280 380 134 108 3 1.1 1080 2810 352956X2 2097956 294 371 16 2.5 1 0.29 2.3 3.47 2.3 41.3 480 600
　 420 133 106 4 2 1270 1936 351056X2 97156 302 397 14 3 2 0.33 2.03 3.02 1.98 58.1 450 560
　 420 186 146 5 1.1 1860 4000 352056X2 2097156 302 400 20 4 4 0.37 1.8 2.7 1.8 81.5 450 560
300 420 160 128 4 1.1 1470 3530 352960X2 2097960 317 408 18 3 1 0.28 2.4 3.6 2.3 64 450 560
　 460 210 165 4 1.5 2200 4940 352060X2 2097160 315 405 14 4 1 0.31 2.2 3.2 2.1 118 430 530
　 500 205 152 5 1.5 2200 4500 351160 1097760 327 470 28 4 1.5 0.32 2.1 3.2 2.1 144 400 500
320 440 160 128 4 1.5 1410 3830 352964X2 2097964 335 427 18 3 1 0.3 2.3 3.3 2.2 67 430 530
　 480 210 160 5 1.1 1830 4390 352064X2 2097164 345 456 25 4 1 0.42 1.6 2.4 1.6 122 400 500
340 460 160 128 4 1 1575 4050 352968X2 2097968 355 448 18 3 1 0.31 2.2 3.2 2.1 71 400 500
　 520 180 135 5 1.5 1904 4070 351068 97168 360 501 27 4 1.5 0.29 2.3 3.4 2.3 119 380 480
　 580 242 170 5 1.5 2870 5970 351168 1097768 368 555 38 4 1.5 0.42 1.6 2.4 1.6 214 340 430
350 590 200 140 9.5 1.5 2800 5500 350670 97770 368 566 32 8 1.5 0.4 1.69 2.5 1.64 212 320 400
360 480 160 128 4 1 1490 4270 352972X2 2097972 376 468 18 3 1 0.33 2.1 3.1 2 74.3 380 480
　 530 155 110 5 1.5 1690 3300 350672D1 37772 378 510 25 4 1.5 0.4 1.7 2.5 1.6 109 380 480
　 530 155 110 5 1.5 1690 3300 350672 97772 378 510 25 4 1.5 0.4 1.7 2.5 1.6 107 380 480
　 540 169 134 6 2 1980 3950




Dimensions Basic load rating Bearing code Installation size constant Calculation coefficient weight Limit speed
mm kN Current code Original code da Da a2 ra ra1 e Y1 Y2 Y0 kg r/min
max min max max
d D T C rm r1 Cr Cor 　 　 mm  　 　 　 　 　 fat oil
min min
380 520 145 105 4 1.1 1210 3250 351976 1097976 402 505 22 3 1 0.43 1.6 2.3 1.6 80.3 360 450
　 560 190 140 5 1.5 2150 5090 351076 97176 406 542 27 4 1.5 0.31 2.2 3.2 2.1 146 340 430
　 620 242 170 5 1.5 3310 7430 351176 1097776 405 598 38 4 1.5 0.46 1.5 3.2 1.4 243 300 380
400 540 150 105 4 1.1 1210 3110 351980 1097980 420 525 24 3 1 0.45 1.5 2.2 1.5 86.9 320 400
　 590 185 123 5 2 2710 5950 350180D 37780 420 558 35 4 2 0.31 2.2 3.2 2.1 166 320 400
　 600 206 150 5 1.5 2620 6380 351080 97180 420 580 30 4 1.5 0.4 1.7 2.5 1.7 180 300 380
420 560 145 105 4 1.1 1450 3740 351984 1097984 440 546 24 3 1 0.31 2.2 3.2 2.1 88.7 300 380
　 620 190 125 5 1 2450 5700 350184D 37784 440 598 34 4 1 0.35 2.1 3.2 2.1 171 280 360
　 620 206 150 5 1.5 2650 6600 351084 97184 448 601 30 4 1.5 0.4 1.7 2.5 1.7 187 280 360
　 700 275 200 6 2.5 4270 8810 351184 1097784 460 670 40 5 2 0.32 2.1 3.2 2.1 392 240 340
440 600 170 125 4 1.1 1890 4860 351988 1097988 460 585 24 3 1 0.39 1.8 2.6 1.7 114 280 360
　 650 212 152 6 2.5 2750 7020 351088 97188 469 629 32 5 2 0.43 1.6 2.3 1.5 213 260 340
460 620 174 130 4 1.1 1910 4990 351992 1097992 480 605 24 3 1 0.4 1.7 2.5 1.7 130 260 340
　 680 230 175 6 2.5 2680 5900 351092 97192 489 657 32 5 2 0.31 2.2 3.2 2.1 253 220 300
480 650 180 130 5 1.5 1950 5270 351996 1097996 520 633 27 4 1.5 0.42 1.6 2 1.6 151 240 320
　 700 240 180 6 2.5 3330 8190 351096 97196 511 671 32 5 2 0.32 2.1 3.2 2.1 281 200 280
490 640 180 144 7.5 3 2290 6600 350698 97798 514 615 20 6 2.5 0.37 1.8 2.7 1.8 140 220 300
500 670 180 130 5 1.5 2150 6120 3519/500 10979/500 524 650 27 2 1.5 0.44 1.5 2.3 1.6 159 220 300
　 720 236 180 6 2.5 3390 8450 3510/500 971/500 530 682 28 5 2 0.33 2 3 2 289 190 260
520 740 190 120 2.5 2.5 2780 6800 3506/520 977/520 546 712 37 2 2 0.48 1.4 2.1 1.4 231 190 260
530 710 190 136 5 1.5 2390 6800 3519/530 10979/530 554 683 29 4 1.5 0.41 1.6 2.5 1.6 190 190 260
560 750 213 156 5 1.5 2550 7060 3519/560 10979/560 580 725 16 4 1.5 0.44 1.5 2.3 1.5 235 170 220
　 820 260 185 6 2.5 4340 10800 3510/560 971/560 594 795 39 5 2 0.4 1.7 2.5 1.7 409 160 200
600 800 205 156 5 1.5 3210 9460 3519/600 10979/600 625 779 30 4 1.5 0.33 2.1 3.1 2 266 150 190
　 870 270 198 6 2.5 4880 12730 3510/600 971/600 630 845 39 5 2 0.41 1.6 2.5 1.6 500 130 170

Dimensions Basic load rating Bearing code Installation size constant Calculation coefficient weight Limit speed
mm kN Current code Original code da Da a2 ra ra1 e Y1 Y2 Y0 kg r/min
max min max max
d D T C rm r1 Cr Cor 　 　 mm 　 　 　 　 　 fat oil
min min
630 850 242 182 6 2.5 3730 10390 3519/630 10979/630 657 829 32 5 2 0.32 2.1 3.2 2.1 368 360 450
670 900 240 180 6 2.5 5300 12300 3519/670 10979/670 703 875 32 5 2 0.43 1.6 2.3 1.5 146 340 430
710 950 240 175 6 2.5 4070 12400 3519/710X2 10979/710 743 925 34 5 2 0.49 1.5 2.2 1.4 243 300 380
　 1030 236 208 7.5 4 5750 14300 3506/710X2 　 746 968 14 6 3 0.39 1.7 2.6 1.7 86.9 320 400
　 1030 315 220 7.5 3 7830 18400 3510/710 971/710 810 995 14 6 3 0.43 1.6 2.3 1.5 166 320 400
720 915 190 140 3 6 3200 9650 3506/720 977/720 756 890 27 2 4 0.35 1.9 2.9 1.9 180 300 380
750 1000 264 194 6 2.5 5020 14480 3519/750 10979/750 793 978 37 5 2 0.4 1.7 2.5 1.6 88.7 300 380
800 1060 270 204 6 2.5 5020 15000 3519/800 10979/800 838 1031 37 5 2 0.35 1.9 2.9 　 171 280 360
850 1120 268 188 6 2.5 5460 16860 3519/850 10979/850 886 1093 42 5 2 0.46 1.5 2.2 1.5 187 280 360
950 1250 300 220 7.5 3 6790 21100 3519/950 10979/950 994 1220 42 6 2.5 0.33 2 3 2 392 240 340



Product introduction
Double row tapered roller bearings are used to carry combined radial and axial loads mainly consisting of radial load. They can limit axial displacement in two direction of the shafts (or shells) and can therefore be used as bidirectional axial positioning bearings.
The performance of double row tapered roller bearings (type TDO) is similar to that of two single row tapered roller bearings installed back to back, but the double row tapered roller bearings have fewer parts, are easier to install and disassemble and have better rigidity. Therefore, they are often used for alternating load carrying conditions, such as reducer, coiling machine and so on.
The performance of the double row tapered roller bearings (type TDI) is similar to that of two single row tapered roller bearings installed face to face. Compared to double row tapered roller bearings (type TDO), double row tapered roller bearings (type TDI) have smaller installing space but less rigidity. Most of them are used as positioning end bearings carrying medium load, such as roll bearing positioning end, reducer and so on.
There is a spacer ring between the two inner rings of an double row tapered roller bearing (type TDO) and a spacer ring between the two outer rings of an double row tapered roller bearing (type TDI). The radial and axial clearance of the bearing can be adjusted by changing the thickness of the spacer ring.
