Single-row crossed roller slewing bearings (external gears)

Single-row crossed roller slewing bearings (external gears)

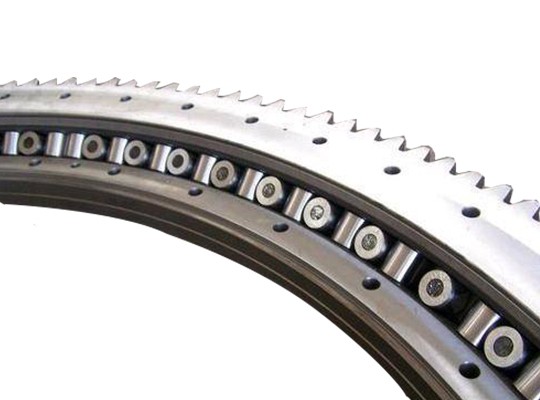

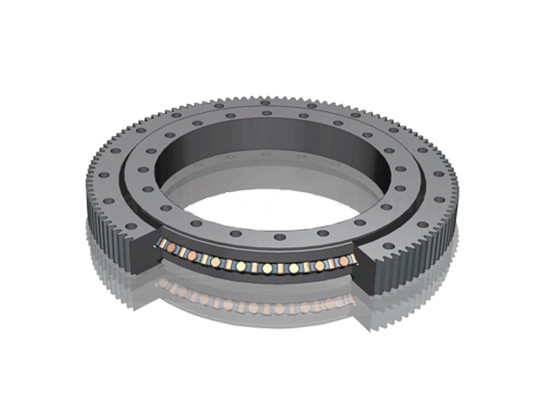

Single row cross cylindrical roller slewing bearing consists of two races. It is compact in structure, light in weight, high in manufacturing precision and small in assembling clearance with high requirements for installation accuracy, and has 1:1 cross-arrangement of rollers. It can withstand axial force, tilting moment and large radial force at the same time, and is widely used in hoisting and conveying, construction machinery and military products.

sale@lyefinebearing.com

Wechat : +86-13837910731

Tel:+86-13837910731

Chat Now Send Message

Specifications|Product introduction|Related products|Inquiry

Specifications

Single-row crossed roller slewing bearings (external gears)

Length unit：mm weight unit：Kg

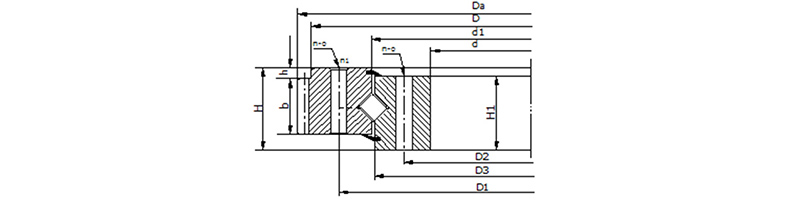

No	Basic designations	Boundary dimensions			Mount dimensions				Structure dimensions					Gear parameter					Mass reference
	External gears	D	d	H	D1	D2	n	Ф	n1	D3	d1	H1	h	b	x	m	Da	z
1	111.25.500	602	398	75	566	434	20	18	4	498	502	65	10	60	+0.5	5	629	123	84
	112.25.500															6	628.8	102	84
2	111.25.560	662	458	75	626	494	20	18	4	558	562	65	10	60	+0.5	5	689	135	92
	112.25.560															6	688.8	112	92
3	111.25.630	732	528	75	696	564	24	18	4	628	632	65	10	60	+0.5	6	772.8	126	111
	112.25.630															8	774.4	94	111
4	111.25.710	812	608	75	776	644	24	18	4	708	712	65	10	60	+0.5	6	850.8	139	125
	112.25.710															8	854.4	104	125
5	111.28.800	922	678	82	878	722	30	22	6	798	802	72	10	65	+0.5	8	966.4	118	179
	112.28.800															10	968	94	179
6	111.28.900	1022	778	82	978	822	30	22	6	898	902	72	10	65	+0.5	8	1062.4	130	200
	112.28.900															10	1068	104	200
7	111.28.1000	1122	878	82	1078	922	36	22	6	998	1002	72	10	65	+0.5	10	1188	116	242
	112.28.1000															12	1185.6	96	242
8	111.28.1120	1242	988	82	1198	1042	36	22	6	1118	1122	72	10	65	+0.5	10	1298	127	261
	112.28.1120															12	1305.6	106	261
9	111.32.1250	1390	1110	91	1337	1163	40	26	5	1248	1252	81	10	75	+0.5	12	1449.6	118	362
	112.32.1250															14	1453.2	101	362
10	111.32.1400	1540	1260	91	1487	1313	40	26	5	1398	1402	81	10	75	+0.5	12	1605.6	131	417
	112.32.1400															14	1607.2	112	411
11	111.32.1600	1740	1460	91	1678	1513	45	26	5	1598	1602	81	10	75	+0.5	14	1817.2	127	488
	112.32.1600															16	1820.8	111	484
12	111.32.1800	1940	1660	91	1887	1713	45	26	5	1798	1802	81	10	75	+0.5	14	2013.2	141	530
	112.32.1800															16	2012.8	123	530
13	111.40.2000	2178	1825	112	2110	1891	48	33	8	1997	2003	100	12	90	+0.5	16	2268.8	139	935
	112.40.2000															18	2264.4	123	935
14	111.40.2240	2418	2065	112	2350	2131	48	33	8	2237	2243	100	12	90	+0.5	16	2492.8	153	1008
	112.40.2240															18	2498.4	136	1008
15	111.40.2500	2678	2325	112	2610	2391	56	33	8	2497	2503	100	12	90	+0.5	18	2768.4	151	1147
	112.40.2500															20	2776	136	1147
16	111.40.2800	2978	2625	112	2910	2691	56	33	8	2797	2803	100	12	90	+0.5	18	3074.4	168	1320
	112.40.2800															20	3076	151	1320
17	111.50.3150	3376	2922	134	3286	3014	56	45	8	3147	3153	122	12	110	+0.5	20	3476	171	2222
	112.50.3150															22	3471.6	155	2222
18	111.50.3550	3776	3322	134	3686	3414	56	45	8	3547	3553	122	12	110	+0.5	20	3876	191	2470
	112.50.3550															22	3889.6	174	2470
19	111.50.4000	4226	3772	134	4136	3864	60	45	10	3997	4003	122	12	110	+0.5	22	4329.6	194	2800
	112.50.4000															25	4345	171	2800
20	111.50.4500	4726	4272	134	4636	4364	60	45	10	4497	4503	122	12	110	+0.5	22	4835.6	217	3100
	112.50.4500															25	4845	191	3100
