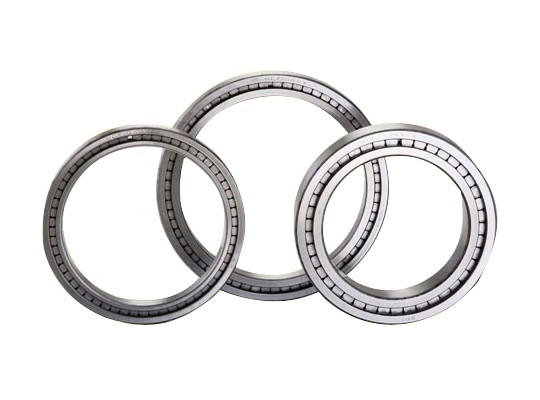

Single-row full complement cylindrical roller bearings

Because the ring raceways are full of rollers and having no cage, the full complement cylindrical roller bearings have higher bearing capacity. At the same time, because this type of bearing has no cage to guide and separate the roller, there will be relative slippage between the rollers. So, compared with the ordinary cylindrical roller bearings, their using speed is lower and noise is lager. The main structures are: single row (NCF type) and double row (NNCF) bearings.

Specifications
Single-row full complement cylindrical roller bearings


Dimensions

Basic load

ratings

Designation



Mass

Limiting

speeds

mm

kN

kg



r/min

d

D

B

r1、2min

r3、4min

Ew

Cr

Cor

Grease

Oil

150

210

36

2

1.1

195.5

289

505

NCF2930V

3.7

670

1400



225

56

2.1

1.1

211.7

460

710

NCF3030V

7.1

630

1300

160

220

36

2

1.1

205.7

310

535

NCF2932V

3.8

630

1300



240

60

2.1

1.1

225.1

520

810

NCF3032V

8.6

600

1200

170

215

22

1.5

1.1

203.5

149

272

NCF1834V

1.8

600

1200



230

36

2

1.1

216

320

570

NCF2934V

4.1

600

1200



260

67

2.1

1.1

243.2

675

1070

NCF3034V

11.9

560

1100

180

225

22

1.1

1

215.2

154

290

NCF1836V

1.8

600

1200



250

42

2

1.1

232

390

695

NCF2936V

6.0

560

1100



280

74

2.1

2.1

260.5

785

1260

NCF3036V

15.8

560

1100

190

240

24

1.5

1.1

229

178

335

NCF1838V

2.4

560

1100



260

42

2

1.1

244

435

785

NCF2938V

6.5

560

1100



290

75

2.1

2.1

270

805

1320

NCF3038V

16.7

530

1000

200

250

24

1.5

1.1

237.5

193

356

NCF1840V

2.5

560

1100



280

48

2.1

1.5

262

530

955

NCF2940V

8.9

530

1000



310

82

2.1

2.1

288.2

910

1510

NCF3040V

21.4

500

950

220

270

24

1.5

1.1

258

191

385

NCF1844V

2.7

530

1000



300

48

2.1

1.5

283

555

1050

NCF2944V

9.6

480

900



340

90

3

3

312.7

1100

1820

NCF3044V

28.2

450

850

240

300

28

2

1.1

287

236

470

NCF1848V

4.2

480

900



320

48

2.1

1.5

303

580

1140

NCF2948V

10.4

450

850



360

92

3

3

335.25

1350

2490

NCF3048V

31.2

430

800

260

320

28

2

1.1

307.2

247

510

NCF1852V

4.5

430

800



360

60

2.1

1.5

333.7

750

1460

NCF2952V

18.1

400

750



400

104

4

4

376.1

1740

2960

NCF3052V

45.3

380

700


Dimensions Basic load Designation Mass Limiting
ratings speeds
mm kN kg r/min
d D B r1、2min r3、4min Ew Cr Cor Grease Oil
280 350 33 2 1.1 334 330 675 NCF1856V 6.8 400 750
  380 60 2.1 1.5 358.8 814 1750 NCF2956V 19.5 380 700
  420 106 4 4 390.5 1740 3110 NCF3056V 49 360 670
300 380 38 2.1 1.5 363 445 870 NCF1860V 9.7 360 670
  420 72 3 3 385 805 1730 NCF2960V 30.7 340 630
  460 118 4 4 432 1980 3500 NCF3060V 67.6 320 600
320 400 38 2.1 1.5 383 460 925 NCF1864V 10.3 340 630
  440 72 3 3 411 1150 2340 NCF2964V 33 320 600
  480 121 4 4 447.3 2170 3900 NCF3064V 73 300 560
340 420 38 2.1 1.5 401 475 985 NCF1868V 10.7 320 600
  460 72 3 3 431 1190 2470 NCF2968V 34.1 300 560
  520 133 5 5 486 2480 4350 NCF3068V 97 280 530
360 440 38 2.1 1.5 423.2 562 1180 NCF1872V 11.5 300 560
  480 72 3 3 451.5 1220 2610 NCF2972V 36 280 530
  540 134 5 5 503.2 2550 4600 NCF3072V 102 260 500
380 480 46 2.1 1.5 458 575 1230 NCF1876V 18.6 280 530
  520 82 4 4 486.7 1480 3210 NCF2976V 52 260 500
  560 135 5 5 520.5 2610 4800 NCF3076V 108 240 480
400 500 46 2.1 1.5 475 590 1300 NCF1880V 19.5 260 500
  540 82 4 4 511 1650 3550 NCF2980V 53.4 240 480
  600 148 5 5 559.1 2940 5450 NCF3080V 139 220 450
420 520 46 2.1 1.5 499 600 1340 NCF1884V 20.5 240 480
  560 82 4 4 524 1740 3590 NCF2984V 55.7 220 450
  620 150 5 5 578.2 3000 5650 NCF3084V 147 200 430
440 540 46 2.1 1.5 516 615 1410 NCF1888V 21.3 220 450

Dimensions Basic load Designation Mass Limiting
ratings speeds
mm kN kg r/min
d D B r1、2min r3、4min Ew Cr Cor Grease Oil
440 600 95 4 4 565.5 2100 4160 NCF2988V 78.2 200 430
460 580 56 3 3 553 920 1950 NCF1892V 32.5 200 430
  620 95 4 4 579 2130 4480 NCF2992V 81.2 190 400
480 600 56 3 3 573.5 940 2040 NCF1896V 33.8 190 400
  650 100 5 5 606 2380 5100 NCF2996V 95.1 180 380
500 620 56 3 3 594 1030 2200 NCF18/500V 35 180 380
  670 100 5 5 634.5 2420 5250 NCF29/500V 98.4 170 360
530 650 56 3 3 624.5 990 2240 NCF18/530V 36.9 170 360
560 680 56 3 3 655 1020 2360 NCF18/560V 39.3 160 340
600 730 60 3 3 696 1140 2680 NCF18/600V 48.9 150 320
630 780 69 4 4 739 1470 3400 NCF18/630V 68.8 140 300
670 820 69 4 4 783 1520 3550 NCF18/670V 72.7 130 280
  820 88 4 4 783 2040 5340 NCF28/670V 90.8 130 280



Product introduction
Because the ring raceways are full of rollers and having no cage, the full complement cylindrical roller bearings have higher bearing capacity. At the same time, because this type of bearing has no cage to guide and separate the roller, there will be relative slippage between the rollers. So, compared with the ordinary cylindrical roller bearings, their using speed is lower and noise is lager. The main structures are: single row (NCF type) and double row (NNCF) bearings.
NCF type
NCF - it is single row roller bearing, can carry unidirectional axial load, and can be used as unidirectional positioning bearing;
NNCF type
NNCF - it is double row roller bearing, can carry unidirectional axial load, can be used as unidirectional positioning bearing, and is suitable for the low speed and heavy load conditions.
Open single row and double row full complement cylindrical roller bearings are mainly used for the low speed and heavy load conditions of general mechanical equipment.
Closed double row full complement cylindrical roller bearings are mainly used for wire rope pulley of crane.
